Recovery Clamp

Product: Flexible riser / cable / umbilical
OD range: 50 –400mm (interchangeable inserts)
Design loads: Up to 20t WLL
Activation: ROV / Diver / Topside
ROV Interface: Class 6 TT receptacle
(class 4 adaptor available)
Installation: Vertical or horizontal

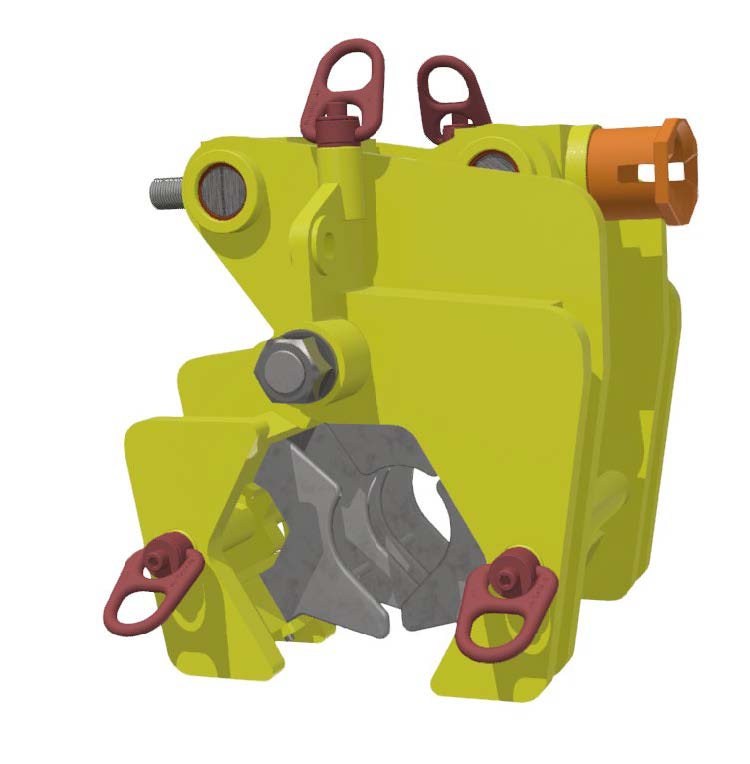

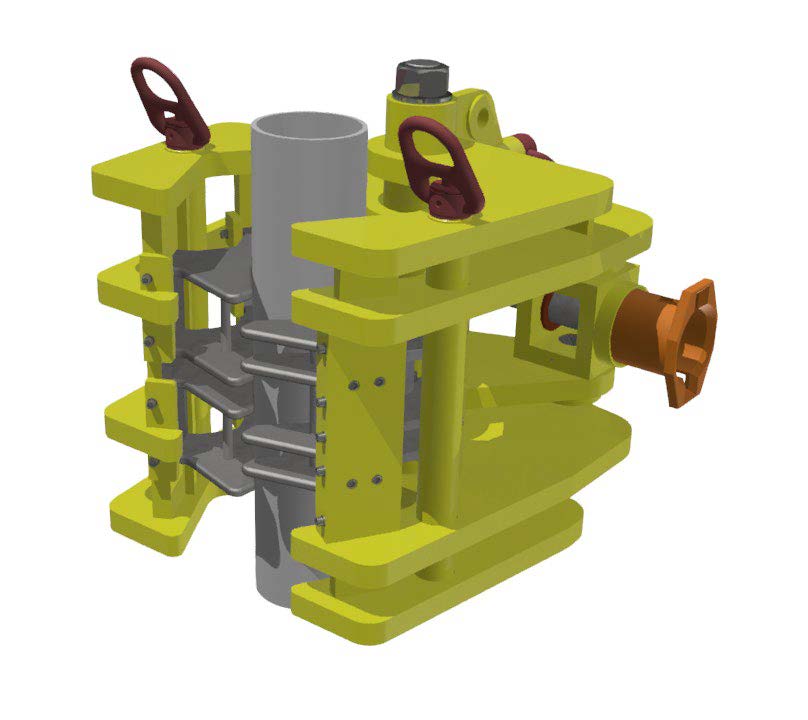

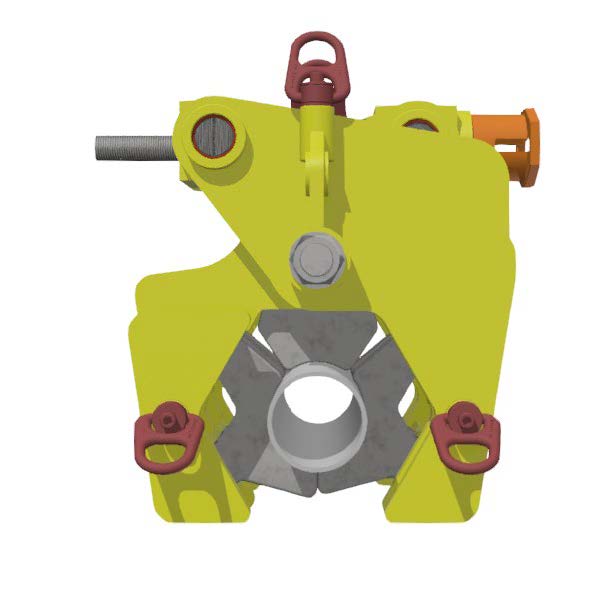

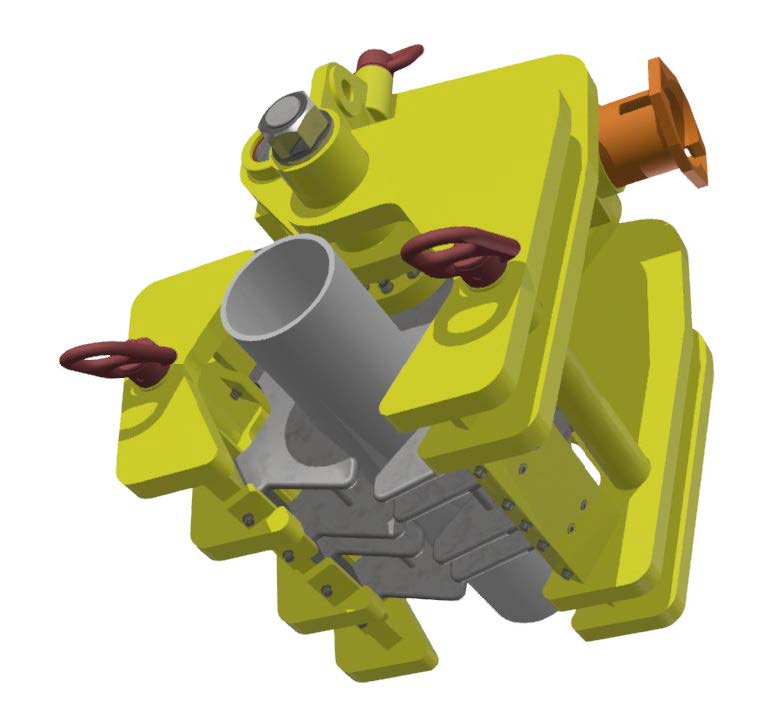

Robust fabricated steel design c/w integral padeye sat both ends for Recovery operations. Profiled design to provide a saddle on the upper side of the clamp ID allowing easy seating on the recoverable product. Shaped clamp ends (and inserts) to provide a scooping style arrangement, which allows the product to be collected from the seabed and drawn into the clamp ID during activation. Fullly mechanical design operated by ROV class 4 torque tool.
