High Pressure Multifluid Backpack

Features

  • 800 Bar pump supply
  • 30 L/min pump flow
  • 80L flexible bladder reservoir
  • Integrated flow control valve
  • Pressure Relief & Relieving Valve
  • Pressure Safety Valve
  • Pilot to open vent-valve
  • Dual acting booster pump
  • Bulkhead connection plate
  • Integrated DCV Valve

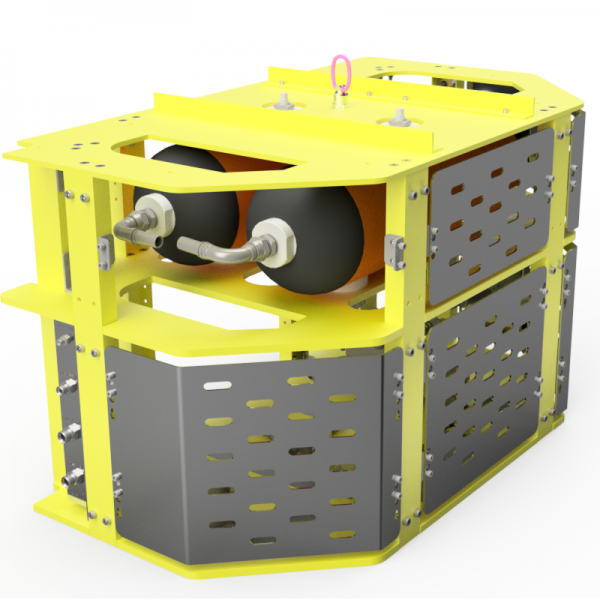

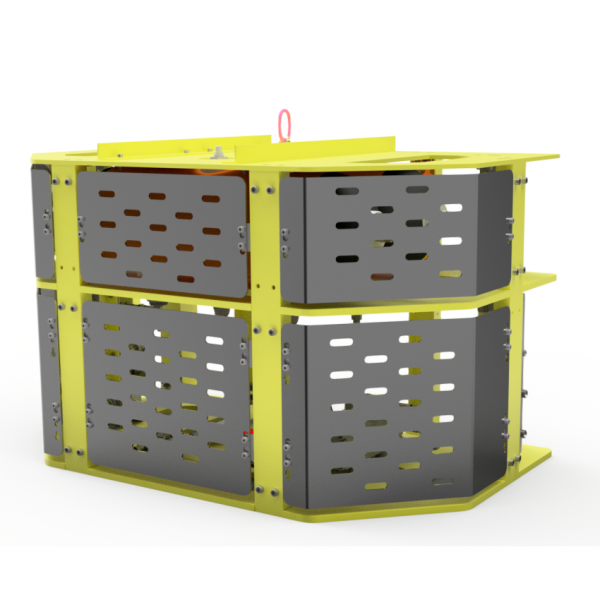

The High Pressure Multifluid Backpack is compact, simple to incorporate and service friendly all-in-one pump system.

The Backpack pump system is an isolated hy-draulic pump unit that can easily incorporate into a ROV hydraulic system to provide an isolated hy-draulic high-pressure supply for multifluid injection, pressure testing and intervention work.The Backpack skid consist of an 80L reservoir, 800 bar pump, depth compensated flow-reducing valve and pressure safety valves. It can easily be fitted with pressure testing equipment and logging software for recording of pressure testing.
