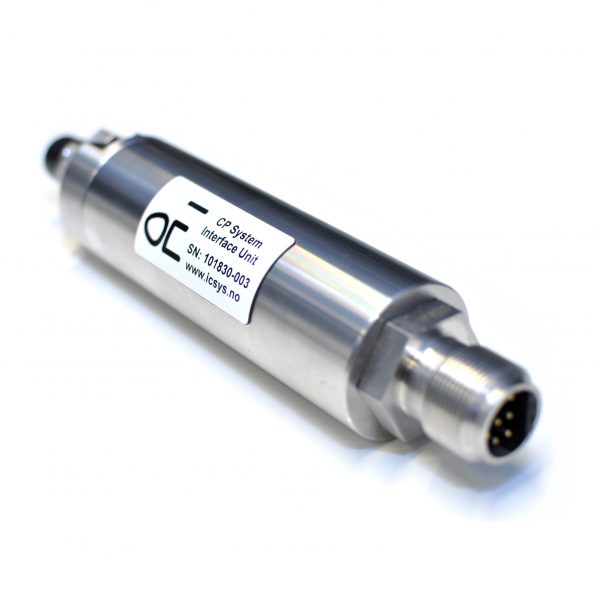

Digital CP Probe System

Features

  • Type Contact probe system
  • Automatic comport selection
  • Local isolated analog to digital conversation
  • ROV friendly interface
  • Communication RS232/CAN-Bus
  • Calibration kit included
  • Depth rating 3000m

The iCsys Digital CP System connects to standard CP sensors and converts the analog signal locally to a digital RS232 or CANBus communication.

This solution minimizes noise and interference to the signal because of the short analog signal path. It simplifies integration into existing systems by eliminating the need for specialized CP sensor inputs. A windows based graphical user interface application displays the readings and also displays a one minute history on a graph. It is possible to log the reading and add notes to be able to print or archive the readings for later lookup.
