Dirty Work Pack 207 Bar 45 L/Min GEN-1

Features

  • 207 / 345 Bar pump supply
  • 45 L/min pump flow
  • Integrated flow control valve
  • Mineral oil or water based fluid
  • Rated to 3000 MSW
  • Bulkhead connection
  • Steel protection cover

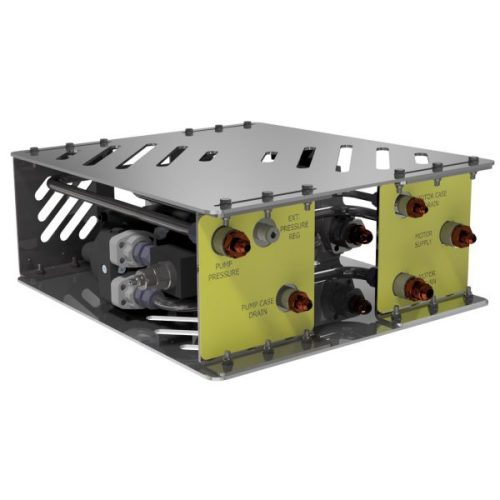

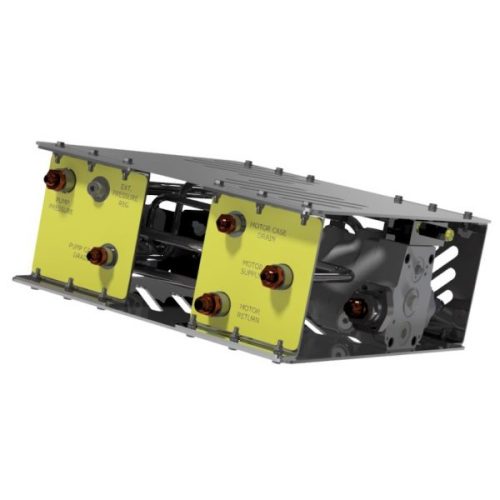

This Dirty Work Pack is an Isolated Hydraulic Power Unit (IHPU) that can be easily incorporated into a ROV hydraulic system to provide an isolated hydraulic supply for driving tooling and equipment that may potentially otherwise cause contamination to the main ROV hydralic supply.

The unit is a fully self-contained circuit incorporating hydraulic motor, pressure compensated pump, compensated bellhousing, pressure and return line and multiple inlet/outlet connection points. Hook-up to the ROV is quick and simple by connecting a supply, return and drain line to a ROV valve pack function. Can also be delivered with compensated reservoir and electric/hydraulic operated directional valve as option.
