ROV Skids

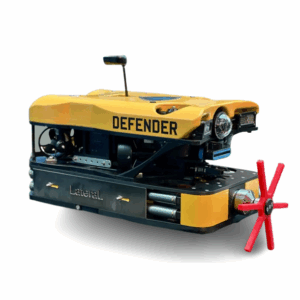

Flexiclean Micro Defender Skid
The exclusive Defender ROV Skid combines the FlexiClean MICRO with the robust ROV to enhance subsea cleaning and provide an all-inclusive, high power subsea inspection, maintenance and repair solution.
The FlexiClean MICRO Defender Skid comprises:
- A complete skid system including custom buoyancy rated to 1000 meters water depth.
- A Standard FlexiClean Micro motor (Titanium).
- A custom plug and play solution made for the VideoRay Defender.
- Four, flight safe (cargo), battery rods which can be trickled charged and charged on deck without any disassembly. Each battery rod comprises a fully developed battery management system including over current and over temperature control. Battery rods have been designed for 6,000 meter water depth, with the inclusion of a pressure relief valve rated for 1000 meter water depth, with the option for a 6000meter version.
- Power/control bottle made of anodized 6082 aluminium.
- Fully Integrated RS485 control. The defender skid is designed so it does not interfere with any VideoRay defined No-go zones for use with extended navigation packages or sensors. The skid will not interfere with sensors like Doppler Velocity Log /DVL) or Sonars.
-
ROV Skids
Flexiclean Micro Falcon Skid
The Flexi Clean Micro has been successfully integrated with the world-renowned SAAB Seaeye Falcon ROV – a compact and powerful ROV – to deliver a subsea cleaning technology that removes marine growth and debris on underwater structures and equipment.
The FlexiClean MICRO Falcon Skid delivers successful subsea cleaning operations, whilst also undertaking the inspection and maintenance work it is renowned for. In effect, showcasing an end to end, value add offering.
The FlexiClean Mico Falcon Skid comprises:
- A fully balanced skid with integrated buoyancy.
- A modular skid that can be utilised with third party sensor and equipment.
- A standard titanium motor and standard titanium bottle.
- A 48Vdc plug and play solution for the Seaeye falcon.
- Topside RS485 control panel.
- A fully integrated system with all ROV specific parts included.
- Stainless steel penetrator to the Falcon control bottle.
- Flexible axle to minimise load on the motor.
-
ROV Skids
Kyst Design Installer Belly Basket
The Installer Belly Basket is designed to fit directly into the Kystdesign Installer ROV. The Belly Basket is operated like a drawer,
and has a storage room to keep tolling etc. A Fixed Front is mounted to the drawer forfurther possibilities.
The Fixed Front is made to be fitted with a Ø55 6-port Valve Stab Receptacle and a Ø35 4-port Hot Stab Receptacle. -
ROV Skids
Kyst Design Supporter Belly Basket
The Supporter Belly Basket is designed to fit directly into the Kystdesign Supporter ROV. The Belly Basket is operated like a drawer,
and has a storage room to keep tolling etc. A Fixed Front is mounted to the drawer for further possibilities. The Fixed Front is made to be fitted with a Ø55 6-port Valve Stab Receptacle and a Ø35 4-port Hot Stab Receptacle. -
ROV Skids
Octopoda GEN-1 Injection & Test Skid (ITS)
The Injection & Testing Skid (ITS) is designed to reduce cost in subsea operations related to completion, installation, maintenance and other activities related to underwater operations.
ITS comes with two separate reservoirs- and pump circuits for dual media handling without mixing the two types of fluids. All components are field proven and qualified for 690 Bar pumping pressure. A Control Unit (Valve pack) will allow the operator to start and stop the pumps independently and sustain maximum control on both pressure regulation and flow adjustment. Pressure Safety Valves are installed as over-pressure protection on all outlets. ITS comes with digital data logging on each outlet and subsea pressure gauges for visual readout. Bleed-pressure feature on all lines.
-
ROV Skids
Octopoda GEN-2 BOP Shutdown Skid
To meet a secondary intervention emergency and the API S53 standards, the BOP Shutdown Skid is designed and built to operate the BOP’s rams with a maximum pressure of 345 Bar and 300 LPM, using a field proven two stages pump technology.
The BOP Shutdown Skid is a 2 stage high pressure / high flow pump designed in conjunction with Dynaset. Utilizing two HPW90/150 pumps, two HPW460/50 pumps and a manifold frame to allow 345 Bar and 100 LPM simultaneously.
The system pressure is built up in two separate stages. The system is started by piloting supply valve which starts the 2 x LP pumps running at 300 LPM, when pressure builds up to 90 Bar the 2nd stage automatically starts the 2 x HP pumps which are pressurized up to a maximum of 345 Bar at a flow rate of 100 LPM.
-
ROV Skids

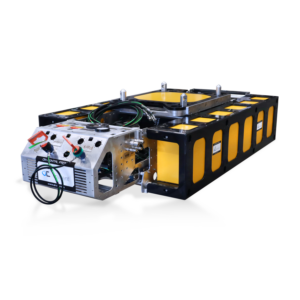

Octopoda GEN-2 High-Flow Dirty Work Pack Skid
The High Flow DWP Skid is designed to reduce cost in subsea operations related to completion, P&A, maintenance and other activities related to underwater operations.
HF DWP Skid comes with 50 liter compensated reservoir, a modular subsea valve pack and a high flow proportional directional control valve rated to 165 LPM. Subsea valve pack allow individual adjustment of pressure and flow on all outputs. A water jetting pump is used to functioning of pilot lines, pressurization & testing and water jetting applications, controlled by the Subsea Valve Pack.
-
ROV Skids
Octopoda GEN-2 ROV Tooling Skid
The Octopoda GEN2 ROV Tooling skid is designed to reduce cost in subsea operations related to installation, maintenance and other activities related to underwater operations.
The Octopoda GEN2 ROV Skid is equipped with interchangeable interface frame, there are 3 different setups where we have chosen the most standard ROV types. You can easily choose between drawer or fixed front. For the fixed front solutions there are possibilities to customize, or you can use it as it is, see page 2 for fixed front layout. The skid can be equipped with all kinds of tooling, such as DWP, Torque Tool, Dredger`s, pressure test tooling, cutting tool and others.
